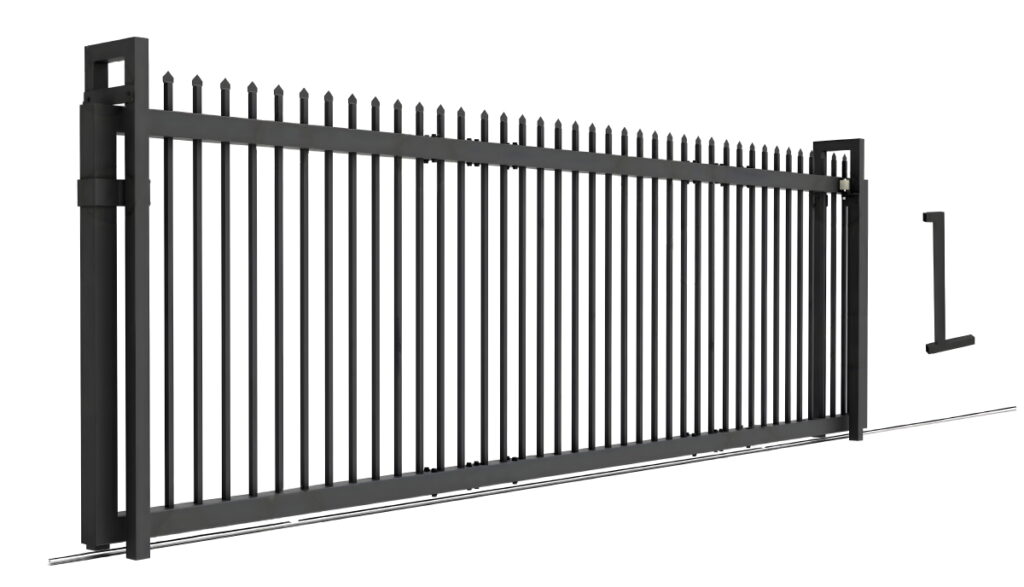

Security Fencing Sliding Gates

⊕ Simple DIY Sliding Gate Kits
⊕ 1800H & 2100H High Kits
⊕ Spear Top Picket Panels
⊕ Heavy Duty Steel Construction
⊕ Galvanised & Powder Coated Black
⊕ INSTALLATION GUIDES AND TIPS BELOW

Play Video

Parts

Required

Required Items to make a full Sliding Gate:

⊕ 1 x Sliding Gate Kit
⊕ 4 x Posts
⊕ 2 x Tunnel Post Joiners
⊕ 2 x Guide Rollers
⊕ 2 x Guide Brackets
⊕ 2 x HD Gate Wheels
⊕ 1 x Anti-Lift Plate
⊕ 4 x TapTite Screws
⊕ Bottom Track
⊕ Bottom Track Pins
⊕ Anti-Tamper Tek Screws

Optional Items:
⊕ Middle Gate Panel Insert
⊕ End Frame for Motor Extension

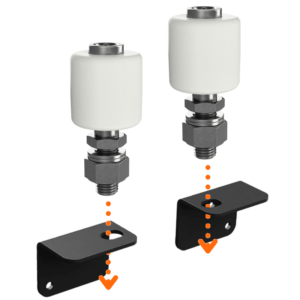

2x Guide Rollers
2x Guide Brackets

1x Gate Catch

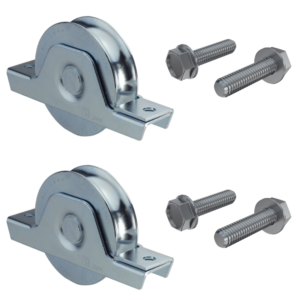

2x Heavy Duty Gate Wheels
4x M8 TapTite Screws

1x Anti-Lift Plate

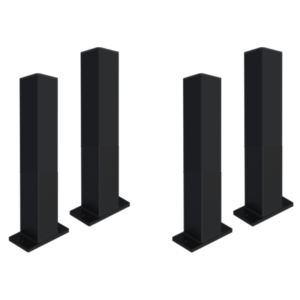

4x Posts 65x65

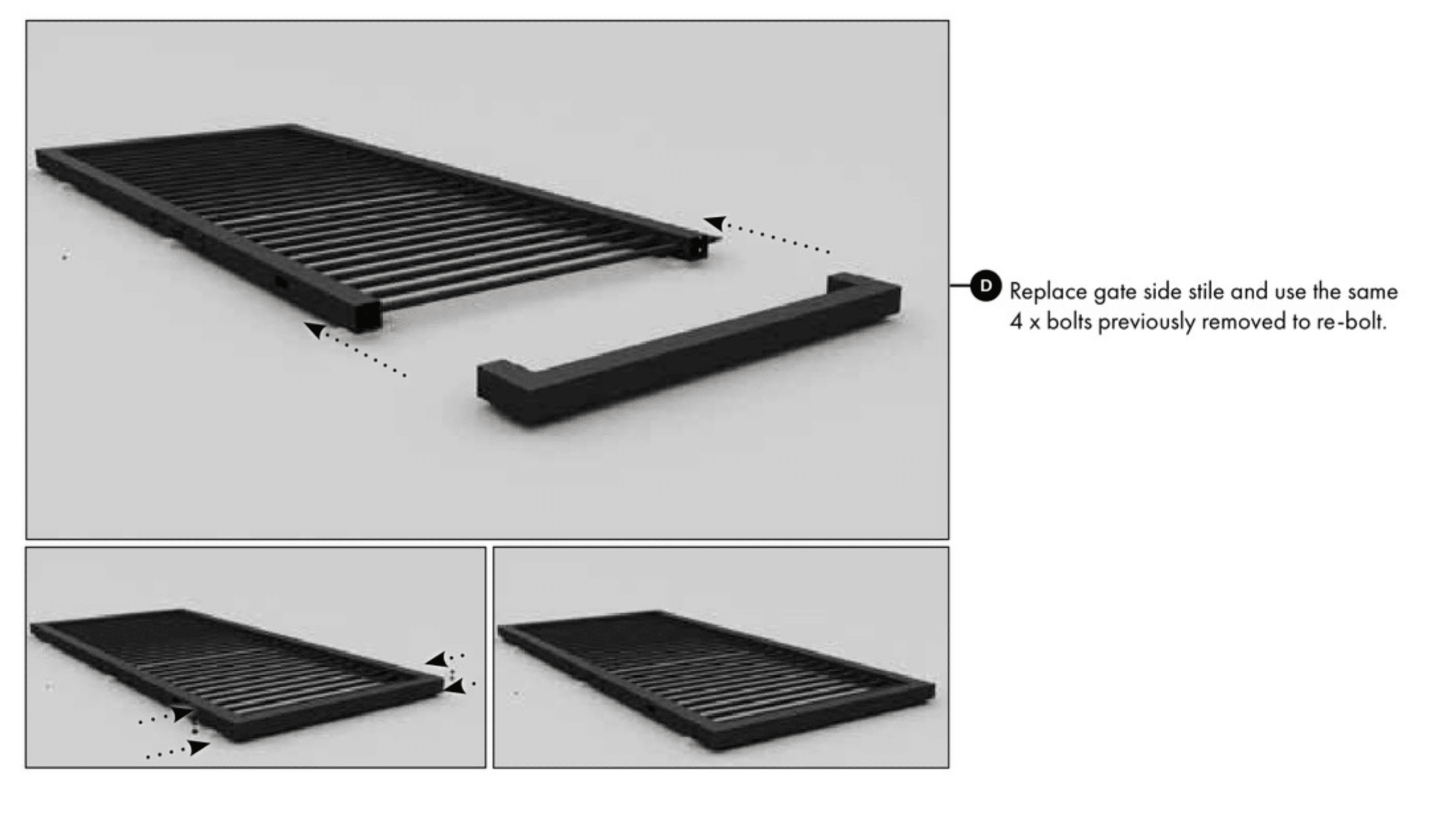

Vertical Gate Stile:
End frame for Motor Extension

Post Layout & Setup
  • String Line
  • Tape Measure
  • Post Level
  • Line marker spray
  • Timber & clamps to hold posts in place
Post & Gate Setup
Gate Installation

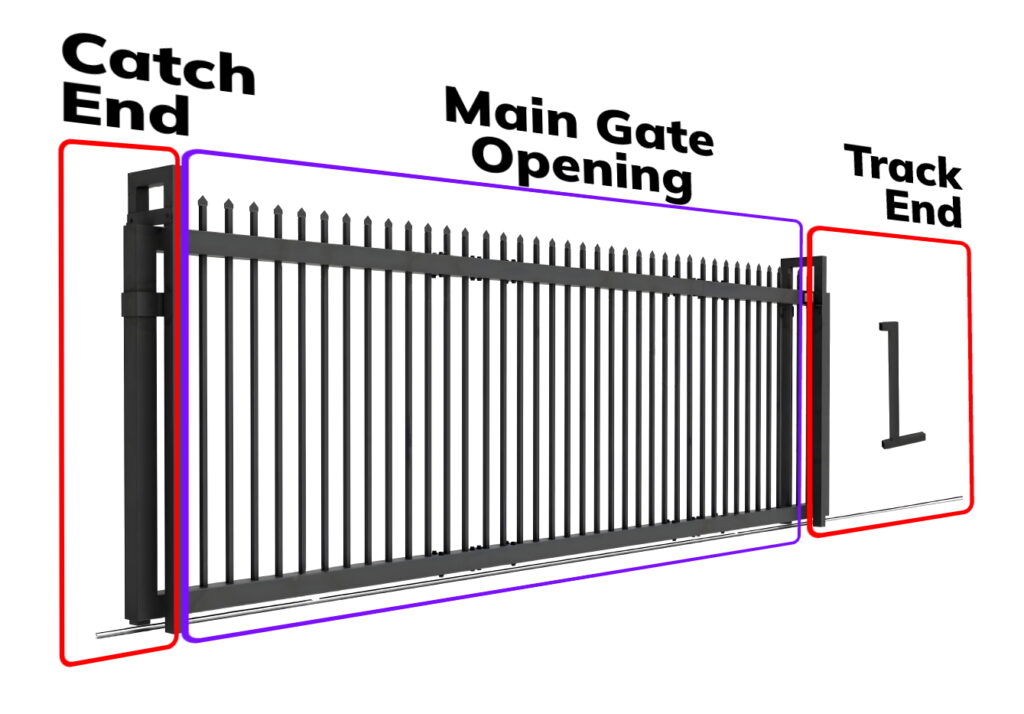

Measure onsite the OVERALL length where you want your new DIY Sliding Gate to go:

IMPORTANT: You MUST have sufficient room for your sliding Gate to fully open. To work this out we will use the centre of post locations to calculate dimensions:

  1. Gate Catch End = 200mm to centre of post
  2. Main Gate Opening = Min width of 3250mm, Max width of 7930mm (measured centre to centre of posts)
  3. Gate Track End = (“Main Gate Opening Dimension” + 730mm) to centre of post

⊕ Min Total Space Required = 7,430mm

⊕ Max Gate Space Required = 16,790mm

ADDITIONAL TIPS

⊕ Motor operated gates require 400mm of extra width to protrude past the Track End Post
⊕ Manual operated gates require 200mm of extra width protrude past the Track End Post
⊕ All gates require approx. 105mm of extra width to protrude past the Catch End Post
⊕ Standard Gate Kit = 4260mm Wide
⊕ Extension Panels = 1260mm or 2100mm Wide
⊕ Total Max Overall gate width = 8500mm Wide
⊕ Bottom Track Length = ((Full Gate Width – 500mm) x2) + 400mm

There are a few simple details required to install your Sliding Gate successfully:

  • Posts MUST have a 200mm Space between them, this allows the (Post Tunnel Joiners) to fit perfectly (you can temporary install the post tunnel joiners to support posts in place)
  • The track is required to go on flat level concrete. The anchor pins used to hold the track down are approx. 38mm Long
  • Typically the track starts at the post of the Gate Catch End.
  • The track stops 100mm before the Track Sliding Gate Stop

IMPORTANT:
If width adjustment of the gate is required, do not cut at the first or middle panel joins.  Always adjust width by cutting at the gate end with the removable vertical stile.

  • Once your gate width is planned, it is best to mark down centre positions of your posts on the ground and remeasure again.
  • When installing the gate, make sure you have sufficient hands on site. The assembled gates are very heavy and need to be stood up and lifted onto the bottom track.
  • A fork lift or crane arm is recommended, otherwise 4 people are required at least.
  • Make sure the posts are cemented in or bolted down with well anchored bolts and everything has 100% set
  • Make sure bottom track is installed securely, well fixed and centred between post tunnels.
Install the Vertical Stile Extension to easily reach an electric drive unit to automatically open and close the gate.

4 Step

Ordering

1800H Gate Kit & Extensions

Our 1800H Security Sliding Gate Kits & Extensions are actually 1790H
This sliding gate kit is designed to be used with our 1800H Security Fence Panels & Gates

  • Sale!

    Sliding Gate Kit 1790H x 4260W

    $1,499.00
    - +
    Add to cart
  • Sale!

    Sliding Gate – Mid Extension 1800H x 1260W

    $469.00
    - +
    Add to cart
  • Sale!

    Sliding Gate – Mid Extension 1800H x 2100W

    $598.00
    - +
    Add to cart
  • Sale!

    Vertical Gate Stile With Extended Bottom Rail (Suits 1790mm sliding gate)

    $132.30
    - +
    Add to cart

2100H Gate Kit & Extensions

Our 2100H Security Sliding Gate Kits & Extensions are actually 2090H
This sliding gate kit is designed to be used with our 2100H Security Fence Panels & Gates

  • Sale!

    Security Fencing – SLIDING GATE KIT 2100H x 4260W

    $1,587.20
    - +
    Add to cart
  • Sale!

    Sliding Gate – Mid Extension 1260W x 2090H

    $336.90
    - +
    Add to cart
  • Sale!

    Sliding Gate – Mid Extension 2100W x 2090H

    $476.70
    - +
    Add to cart
  • Sale!

    Vertical Gate Stile With Extended Bottom Rail (Suits 2090H sliding gate)

    $151.70
    - +
    Add to cart

2. Posts & Parts

You will need the following:

⊕ 4x Cement-In Posts
⊕ 1x Gate Catch
⊕ 2x Tunnel Posts Joiners
⊕ 1x Sliding Gate Angle Brackets
⊕ 1x Anti-Lift Flat Plate (Optional)

  • Sale!

    Post – 65x65mm x 2700mm Galvanised Steel Base Plate Security Fencing Post – B

    $86.95
    - +
    Add to cart
  • Sale!

    Sliding Gate Angle Brackets 90x70mm

    $33.20
    - +
    Add to cart
  • Sale!

    Gate Catch – Steel Sliding Gate

    $58.70
    - +
    Add to cart
  • Sale!

    Anti Lift – Flat Plate

    $19.50
    - +
    Add to cart
  • Sale!

    Tunnel Post Joiner Creates a 200mm Space

    $39.20
    - +
    Add to cart

3. Rollers & Accessories

The following Items are required for your Sliding Gate Kit:

⊕ 2x Guide Rollers
⊕ 2x Heavy Duty Double Bearing Wheels
⊕ 1x Track Stop
⊕ 1x 15mm Packers (To Lift Gate 15mm) Set (Optional)
⊕ Vertical Gate Stile (Optional can be used with a Automatic Gate Motor)

  • Sale!

    Track Sliding Gate Stop

    $31.20
    - +
    Add to cart
  • Sale!

    Steel Track 6000mm Suits Sliding Gates

    $73.80
    - +
    Add to cart
  • Sale!

    Steel Track 3000mm Suits Sliding Gates

    $36.50
    - +
    Add to cart
  • Sale!

    Sliding Gate – GUIDE ROLLER

    $199.00
    - +
    Add to cart
  • Sale!

    Security Fencing – Sliding Gate Joiner Kit

    $174.50
    - +
    Add to cart
  • Sale!

    1x Heavy Duty Gate Wheel 90mm, Double Bearing

    $49.00
    - +
    Add to cart
  • Sale!

    15mm Packers (For Heavy Duty Sliding Gate Wheels)

    $19.50
    - +
    Add to cart

4. Fasteners & Accessories

You will need the following:

⊕ 1x Anti-Tamper Screws Pack
⊕ 1x M8x30mm Taptite Screws Set
⊕ 1x Anti-Tamper Drive Bit required for Anti-Tamper Screws
⊕ KWIKSET Concrete = Approx 3-5 bags required per post
⊕ Track Anchor Pins = (22x Holes for 3m Track) (42x Holes for 6m Track)

  • Sale!

    1x Track Anchor Pin

    $2.95
    - +
    Add to cart
  • Sale!

    25x Anti-Tamper Screws (Replace STD Tek Screws)

    $19.92
    - +
    Add to cart
  • Sale!

    4x M8x30mm Taptite Screw – Suits Heavy Duty Sliding Gate Wheels

    $7.95
    - +
    Add to cart
  • Sale!

    Anti-Tamper Drive Bit

    $47.30
    - +
    Add to cart
  • Sale!

    KwikSet Cement 20kg Bag

    $9.90
    - +
    Add to cart

Trade Tips

& Questions

Online Ordering

It is easy to SITE MEASURE, PLAN, ORDER & INSTALL your DIY Fence.
Simply follow our step by step Site Measure Guide below to work out everything you need.

Have Questions?
Feel free to reach out via Messenger, Email or call our fencing experts directly.

Trade Pricing & Discounts

Our goal is to provide trade & wholesale pricing to all our customers, and we beat most retail prices by an average of 20-50%.

We also offer a match price guarantee on retailers such as Bunnings, Mitre10, Stratco etc.

When you shop with FencesPerth.com, you know you get the best deal on your DIY projects.

Free Site Delivery

Delivered directly to to your site within Perth Metro Area.

Standard delivery fee of $89 will be added at checkout.

Regional Orders will be custom quoted. We will try to minimise costs by batching orders for customers in the same directions.

Pick up available for free from one of our warehouse locations, depending on products and availability.

Post Layout & Setup
  • String Line
  • Tape Measure
  • Post Level
  • Line marker spray
  • Timber & clamps to hold posts in place
Post & Gate Setup
Gate Installation

Measure onsite the OVERALL length where you want your new DIY Sliding Gate to go:

IMPORTANT: You MUST have sufficient room for your sliding Gate to fully open. To work this out we will use the centre of post locations to calculate dimensions:

  1. Gate Catch End = 200mm to centre of post
  2. Main Gate Opening = Min width of 3250mm, Max width of 7930mm (measured centre to centre of posts)
  3. Gate Track End = (“Main Gate Opening Dimension” + 730mm) to centre of post

⊕ Min Total Space Required = 7,430mm

⊕ Max Gate Space Required = 16,790mm

ADDITIONAL TIPS

⊕ Motor operated gates require 400mm of extra width to protrude past the Track End Post
⊕ Manual operated gates require 200mm of extra width protrude past the Track End Post
⊕ All gates require approx. 105mm of extra width to protrude past the Catch End Post
⊕ Standard Gate Kit = 4260mm Wide
⊕ Extension Panels = 1260mm or 2100mm Wide
⊕ Total Max Overall gate width = 8500mm Wide
⊕ Bottom Track Length = ((Full Gate Width – 500mm) x2) + 400mm

There are a few simple steps required to install your Sliding Gate here are a few tips:

  • Posts MUST have a 200mm Space between them, this allows the (Post Tunnel Joiners) to fit perfectly (you can temporary install the post tunnel joiners to support posts in place)
  • The track is required to go on flat level concrete. The anchor pins used to hold the track down are approx 38mm Long
  • We typically start the track at the post of the Gate Catch End.
  • We typically stop the track 100mm before the Track Sliding Gate Stop

IMPORTANT:
If width adjustment of the gate is required, do not cut at the first or middle panel joins.  Always width adjust by cutting at the gate end with the removable vertical stile.

  • Once your gate width is planned, it is best to mark down centre positions of your posts on the ground and remeasure again.
  • When installing the gate, make sure you have sufficient hands on site. The assembled gates are very heavy and need to be stood up and lifted onto the bottom track.
  • A fork lift or crane arm is recommended, otherwise 4 people are required at least.
  • Make sure the posts are cemented in or bolted down with well anchored bolts and everything has 100% set
  • Make sure bottom track is installed securely, well fixed and centred between post tunnels.
Install the Vertical Stile Extension to easily reach an electric drive unit to automatically open and close the gate.

Our security fence panels and gates are constructed from heavy galvanized steel and then powder-coated black for durability and strength.

Accessories either come in Steel Construction or a special blend of polymer and Stainless Steel

Our goal is to provide trade & wholesale pricing to all our customers, and we beat most retail prices by an average of 20-50%.

We also offer a match price guarantee on retailers such as Bunnings, Mitre10, Stratco etc.

When you shop with FencesPerth.com, you know you get the best deal on your DIY projects.

Collection of Orders from our depot is not available currently. This is why we provide free/discounted shipping direct to your site.

For urgent orders please call us to see how we can help you. However, we cannot guarantee it will be possible every time but will do our best to facilitate urgent orders. Thank you for your understanding.

Orders are typically processed and delivered within 24-48hrs*


Order Confirmations:
 We provide order confirmations via text as soon as your order is packed and ready for delivery.

*stock permitting, for large orders time-frame may change and if so, we will contact you.
